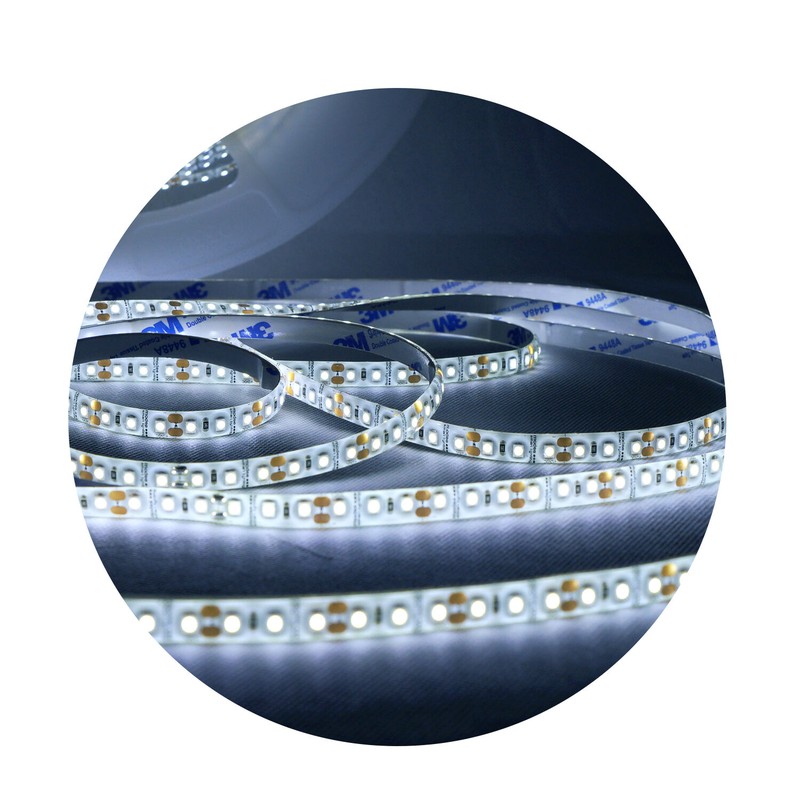

LED strip Modee DC12V 9,6W/m 120LED/m 8mm IP20 6000K (1080 lm/m) B5

LED strip 12 V, 9.6 W/m: 1,080 lumens per metre

This Modee 12 V LED strip gives 1,080 lumens per metre for 9.6 W/m, on a width of 8 mm. It is the right power for functional lighting: worktop, dressing room, shop window, shelves. It comes on a 5 m reel.

LED density

With 120 LEDs per metre, the light points are very close together: under a profile with a diffuser, the line of light is perfectly continuous.

What kind of light?

Cool white 6000 K is close to daylight under a clear sky: a bright light that brings out detail, for a frosty, very contemporary look. Its colour rendering index above 90 reproduces colours faithfully: a real plus for a worktop, a shop window, a dressing room or a mirror.

Where to fit it?

Rated IP20, it is intended for indoor use, away from moisture. For a bathroom or outdoor use, choose the IP65 silicone-sleeved version.

Power supply and installation

It runs on 12 V DC from an LED power supply chosen to suit the installed length: 9.6 W per metre, plus a 20% margin. For 5 m, that means 48 W consumed, so a power supply of at least 58 W. It can be cut at the marked points and sticks with its adhesive backing, ideally inside an aluminium profile.

At a glance

• 12 V DC
• 9,6 W/m, 1 080 lm/m
• 120 LED/m
• Cool white 6000 K
• Width 8 mm, IP20
• 5 m reel
• CRI > 90
• Modee reference: ML-LS12V44W120L/M6000KB5
