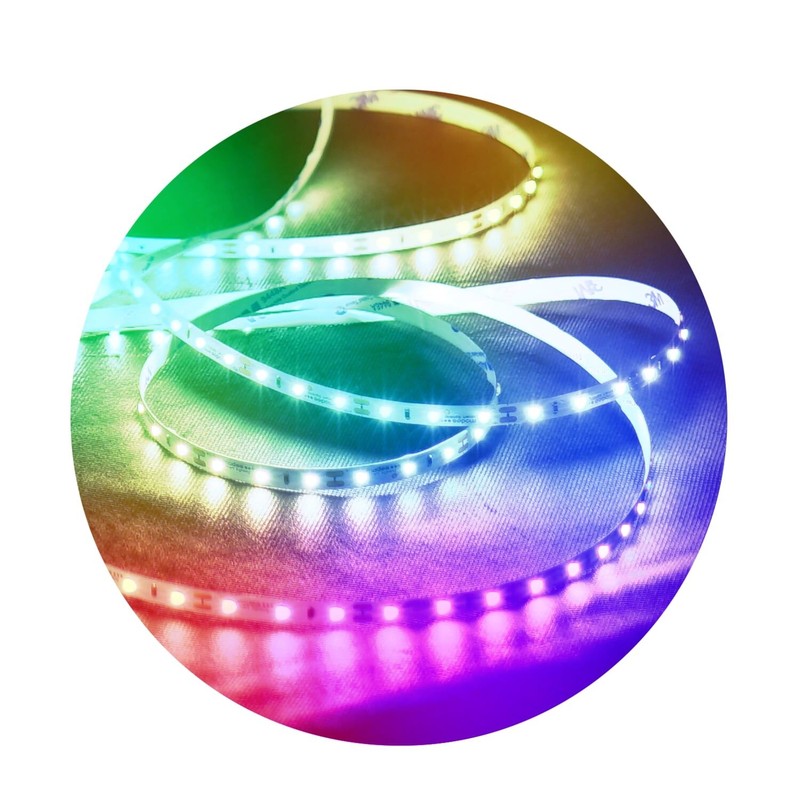

LED strip Modee DC24V 14,4W/m 60LED/m 8mm IP20 RGB (360 lm/m) B5

LED strip 24 V, 14.4 W/m: 360 lumens per metre

This Modee 24 V LED strip gives 360 lumens per metre for 14.4 W/m, on a width of 8 mm. It is the right power for mood lighting: cornice, headboard, alcove, underside of a unit. It comes on a 5 m reel.

LED density

With 60 LEDs per metre, this is a mood lighting strip: use it for indirect lighting — cornice, back of a unit, skirting board — where the light points cannot be seen.

What kind of light?

RGB mode gives access to colours: a way to create a mood, highlight a piece of furniture or mark an occasion, rather than to light a room in the strict sense. Its colour rendering index above 90 reproduces colours faithfully: a real plus for a worktop, a shop window, a dressing room or a mirror.

Where to fit it?

Rated IP20, it is intended for indoor use, away from moisture. For a bathroom or outdoor use, choose the IP65 silicone-sleeved version.

Power supply and installation

It runs on 24 V DC from an LED power supply chosen to suit the installed length: 14.4 W per metre, plus a 20% margin. For 5 m, that means 72 W consumed, so a power supply of at least 86 W. 24 V limits voltage drop compared with 12 V: an advantage on long runs. It is dimmable, with a dimmer or a controller suited to its voltage. It can be cut at the marked points and sticks with its adhesive backing, ideally inside an aluminium profile.

At a glance

• 24 V DC
• 14,4 W/m, 360 lm/m
• 60 LED/m
• RGB colours
• Width 8 mm, IP20
• 5 m reel
• CRI > 90
• Modee reference: ML-LS24V72W60L/MRGBB5
