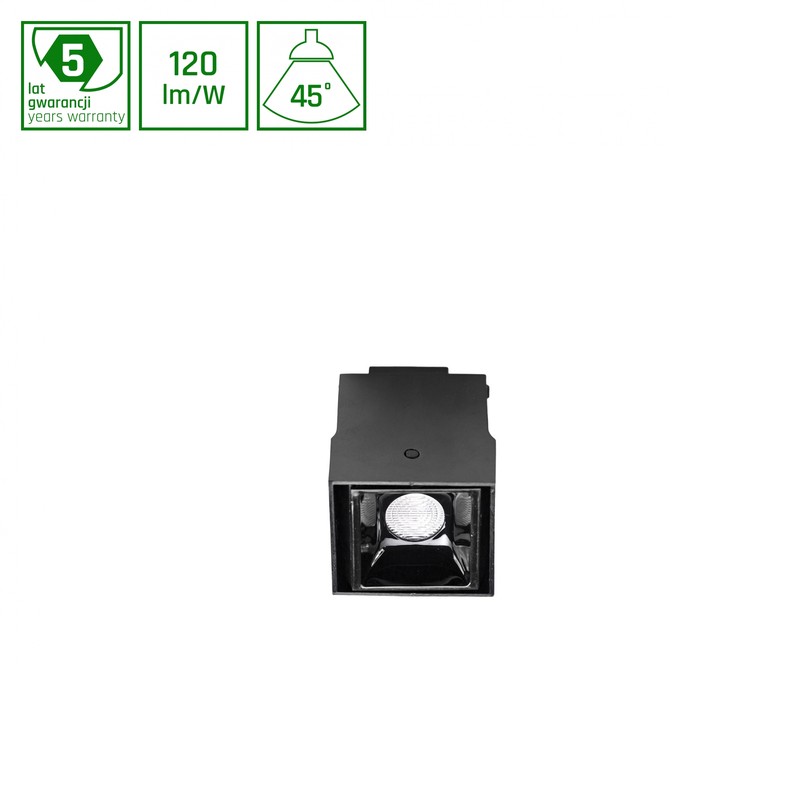

WLD luminaire Grid Module 2 W 3000 K IP20
search
  • WLD luminaire Grid Module 2 W 3000 K IP20
  • WLD luminaire Grid Module 2 W 3000 K IP20 – photo 2
  • WLD luminaire Grid Module 2 W 3000 K IP20 – photo 3

WLD luminaire Grid Module 2 W 3000 K IP20

€87.90
Tax excluded Shipped within 5 to 7 business days

The WLD luminaire Grid Module by Spectrum LED is part of Spectrum's modular WLD system.

2 W – 90 lm · 3000 K · IP20 · 45° · Black

Volume discounts

Quantity Unit discount You Save
6 7% €36.92
15 12% €158.22
Quantity

The minimum purchase order quantity for the product is 3.

Need to check compatibility?

Looking to replace or check a reference? Describe your need and an expert will reply.

Need help with your project?
  Security guarantees

Secure payment by credit card or bank transfer.

  Delivery policy

Dispatch within 2 to 5 days with tracked delivery.

  Return policy

You have 14 days after receipt to make a return, in accordance with your right of withdrawal.

local_shipping
Fast delivery France & Europe
lock
Secure payment Card & bank transfer
assignment_return
Easy returns Within 14 days
support_agent
Expert advice Lighting specialist, Strasbourg

WLD luminaire Grid Module – 2 W

The WLD luminaire Grid Module by Spectrum LED is part of Spectrum's modular WLD system. Luminous flux of 90 lm for 2 W, an efficacy of 120 lm/W.

What kind of light?

Warm white at 3000 K gives a soft, welcoming light for living areas, bedrooms, hotels and restaurants. With a colour rendering index of Ra 90, colours stay true to life: a real plus in shops, kitchens and workshops. The 45° beam lights a defined area while staying comfortable.

Construction and installation

IP20 rating: for dry indoor use. Mounting: on 48 V track. Dimensions: 38.5 × 39 × 50 mm. Manufacturer-rated lifetime: 50 000 hours, 5 years warranty.

At a glance

  • 2 W for 90 lm
  • Efficacy: 120 lm/W
  • Colour temperature: 3000 K
  • Voltage: 24 V
  • Beam angle: 45°
  • IP20 protection
  • Colour rendering: Ra 90
  • Dimmable: No
  • Finish: black
  • 5 years warranty
  • Spectrum reference: WLD+10010WW90

Technical specifications

BrandSpectrum LED
Manufacturer referenceWLD+10010WW90
Product typeWLD luminaire
RangeGrid Module
Power2 W
Rated current700 mA
Voltage24 V
Consumption2 kWh / 1 000 h
FrequencyDirect current (DC)
Protection classClass III
Power factor0.85
Useful luminous flux240 lm (360°)
Luminous flux90 lm (360°)
Luminous efficacy120 lm/W
Luminous intensity165 cd
Colour temperature3000 K
Light colourWarm white
Beam angle45°
Glare rating (UGR)<19
Colour rendering index (CRI)Ra 90
Light source includedYes
Colour consistency (SDCM)≤ 5
DimmableNo
Operating temperature-20 to +40 °C
Warranty5 years
Lifetime50 000 hours
Switching cycles25 000
Housing materialAluminium
Ingress protectionIP20
ColourBlack
Dimensions38.5 × 39 × 50 mm
UseIndoor
Mountingon 48 V track
Made inChina

Why order from STRASSELEC?

  • Lighting specialist — expert advice and professional references
  • Shipped within 5 to 7 business days
  • Secure payment by card or bank transfer
  • 14-day returns (right of withdrawal)

Need advice, a batch or a large quantity? The STRASSELEC team is here to help.

📦 Minimum order quantity: 3 pieces

WLD+10010WW90

Data sheet

Technology
LED
Brand
Spectrum LED
Power
2 W
Colour temperature
3000K
Luminous flux
90 lm
Protection rating (IP)
IP20
Dimmable
non-dimmable
Beam angle
45°
Lifespan
50 000 h
