LED strip Modee DC24V 10W/m COB-480LED/m 8mm IP20 4000K (1030 lm/m) B5

COB LED strip 24 V, 10 W/m: 1,030 lumens per metre

This Modee 24 V LED strip gives 1,030 lumens per metre for 10 W/m, on a width of 8 mm. It is the right power for functional lighting: worktop, dressing room, shop window, shelves. It comes on a 5 m reel.

LED density

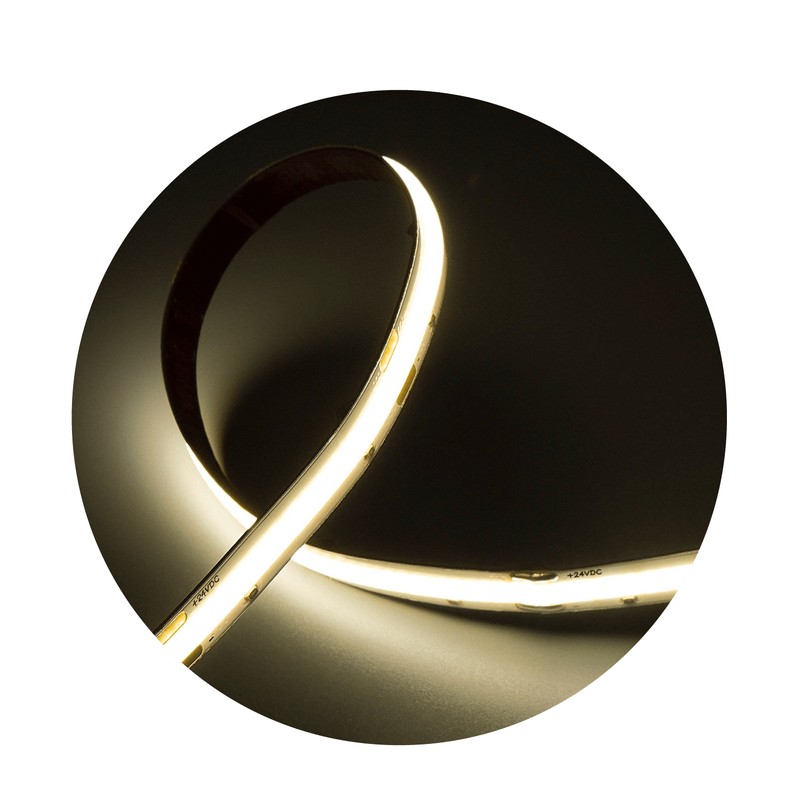

With its LEDs in a continuous line (COB technology), it shows no light points at all: the light forms an even line, even without a diffuser and even in direct lighting.

What kind of light?

Neutral white 4000 K gives a crisp light, neither yellow nor bluish: the most versatile tone, discreet and true to colours. Its colour rendering index above 90 reproduces colours faithfully: a real plus for a worktop, a shop window, a dressing room or a mirror.

Where to fit it?

Rated IP20, it is intended for indoor use, away from moisture. For a bathroom or outdoor use, choose the IP65 silicone-sleeved version.

Power supply and installation

It runs on 24 V DC from an LED power supply chosen to suit the installed length: 10 W per metre, plus a 20% margin. For 5 m, that means 50 W consumed, so a power supply of at least 60 W. 24 V limits voltage drop compared with 12 V: an advantage on long runs. It is dimmable, with a dimmer or a controller suited to its voltage. It can be cut at the marked points and sticks with its adhesive backing, ideally inside an aluminium profile.

At a glance

• 24 V DC
• 10 W/m, 1 030 lm/m
• COB LED, continuous line
• Neutral white 4000 K
• Width 8 mm, IP20
• 5 m reel
• CRI > 90
• Modee reference: ML-LS24V50W480L/M4000KB5
