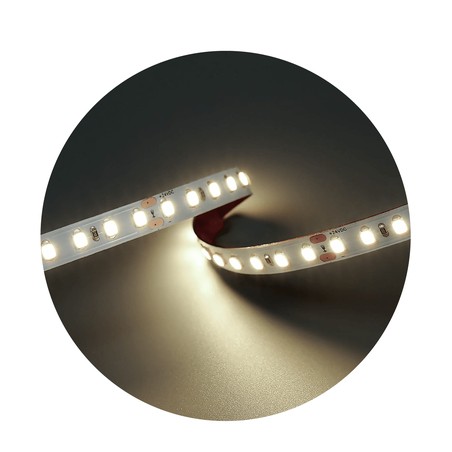

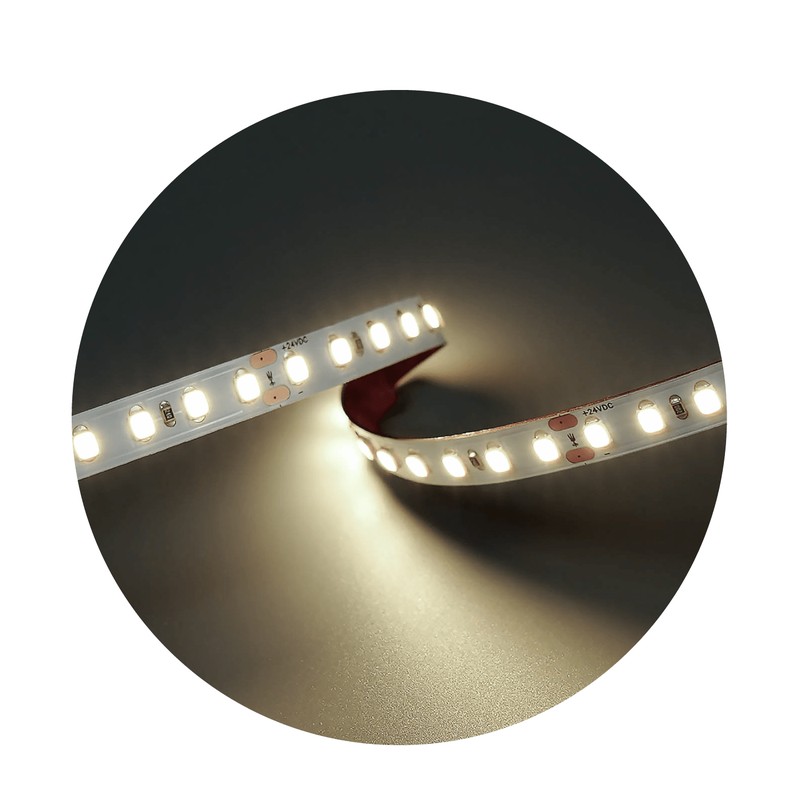

LED strip Modee DC24V 9,6W/m 128LED/m 8mm IP20 4000K CRI90 (1150 lm/m) B5

LED strip 24 V, 9.6 W/m: 1,150 lumens per metre

This Modee 24 V LED strip gives 1,150 lumens per metre for 9.6 W/m, on a width of 8 mm. It is the right power for functional lighting: worktop, dressing room, shop window, shelves. It comes on a 5 m reel.

LED density

With 128 LEDs per metre, the light points are very close together: under a profile with a diffuser, the line of light is perfectly continuous.

What kind of light?

Neutral white 4000 K gives a crisp light, neither yellow nor bluish: the most versatile tone, discreet and true to colours. Its colour rendering index above 90 reproduces colours faithfully: a real plus for a worktop, a shop window, a dressing room or a mirror.

Where to fit it?

Rated IP20, it is intended for indoor use, away from moisture. For a bathroom or outdoor use, choose the IP65 silicone-sleeved version.

Power supply and installation

It runs on 24 V DC from an LED power supply chosen to suit the installed length: 9.6 W per metre, plus a 20% margin. For 5 m, that means 48 W consumed, so a power supply of at least 58 W. 24 V limits voltage drop compared with 12 V: an advantage on long runs. It is dimmable, with a dimmer or a controller suited to its voltage. It can be cut at the marked points and sticks with its adhesive backing, ideally inside an aluminium profile.

At a glance

• 24 V DC
• 9,6 W/m, 1 150 lm/m
• 128 LED/m
• Neutral white 4000 K
• Width 8 mm, IP20
• 5 m reel
• CRI > 90
• Modee reference: ML-LS24V48W128L/M4000KB5

Technical specifications
